Vilter refrigeration compressor

A Vilter története

  • 1867: Founded by Peter Weisel and Ernst Vilter
  • 1882: Development of horizontal reciprocating compressors
  • 1925: Development of vertical reciprocating compressors
  • 1945: Development of series A440 reciprocating compressors
  • 1988: The company became the property of the workers
  • 1990: Development of Single Screw compressors
  • 1996: Factory moves to new (current) location at Facility In Cudahy, WI
  • 2005: The company was bought up by J.P. Kotts & Company
  • 2009: The company moved under Emerson ownership

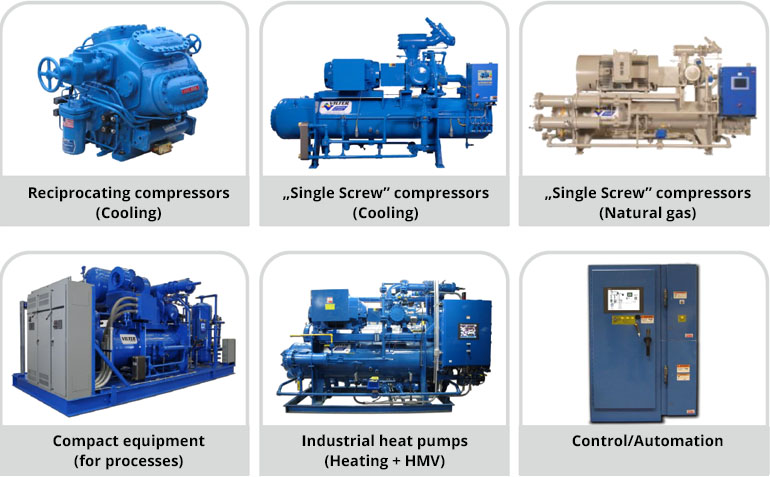

The main products of Vilter:

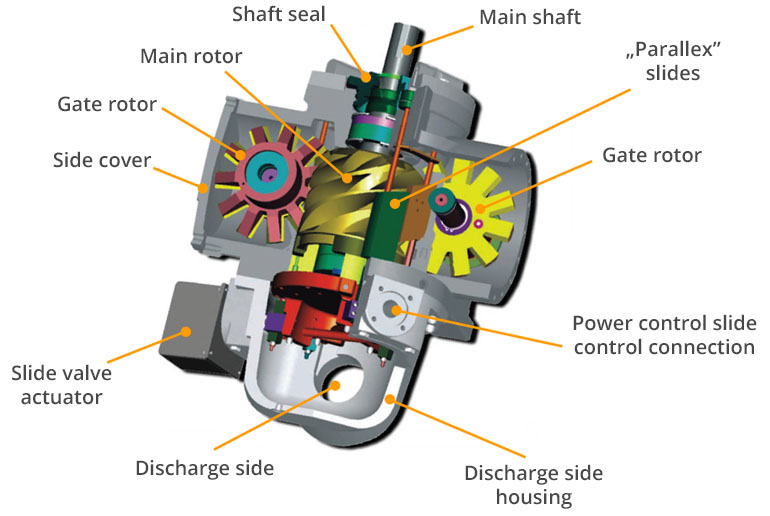

The main components of Vilter compressor

The main components of Vilter compressor

A Vilter Single Screw technológia előnyei

  • Discharge pressure up to 100 Bar
  • Suction pressure up to 28 Bar
  • 271… 5098 m3/ h displacement (~ 3.4 MW NH3 -10 / + 35)
  • 2 to 20 compression ratio
  • Independent pressure ratio and power control
  • Automatic “VI” 1.2… 7.0, mechanical
  • Power control between 10%… 100%
  • Also available in cast steel
  • Balanced forces
  • Decreased load on bearings
  • Reduction of operating costs
  • 5 years warranty on compressor and 15 years warranty on bearings

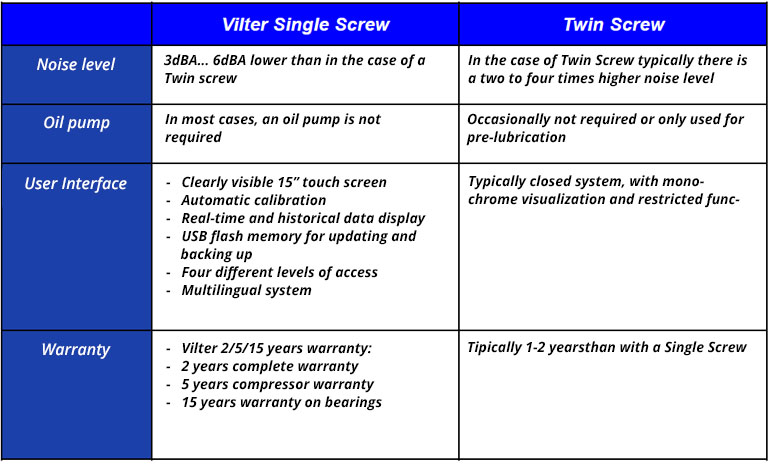

Single Screw or Twin Screw technology?
